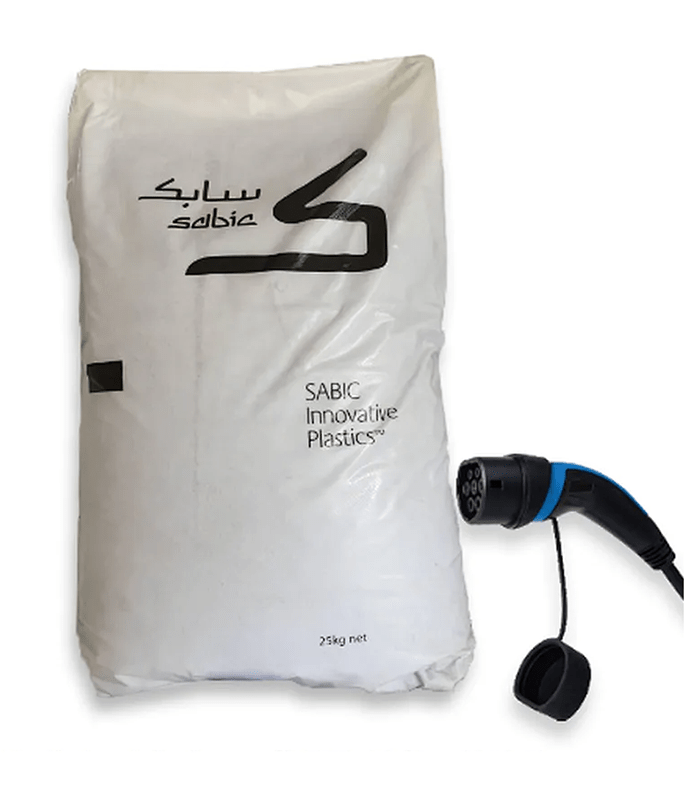

Sabic Valox PC+PBT
|
|
Product information
|
|
Manufacturer
|
Saudi Basic Industry Corporation
|
|
Part Marking Code
|
>PC/PBT material<
|
|
Material Shape
|
PC+PBT Pellets
|
|
Process
|
Injection molding
|
|
Features
|
·Heat resistant ·Flame retardant ·Good insulated
|
|
Application
|
·Electrical switches ·Electrical equipment enclosures
|
|
Physical property
|
Standard
|
Value
|
Unit
|
|
Specific gravity
|
ASTM D792
|
1.34
|
g/cm³
|
|
Specific volume
|
ASTM D792
|
0.75
|
cm³/g
|
|
Water absorption, 23℃ 24hrs
|
ASTM D570
|
0.08
|
%
|
|
Moisture absorption, 23℃ 50% RH 24hrs
|
ASTM D570
|
0.08
|
%
|
|
Mold shrinkage flow, 3.2mm
|
Internal method
|
1-1.4
|
%
|
|
Mold shrinkage flow, 0.75-2.3mm
|
Internal method
|
0.8-1.1
|
%
|
|
Mold shrinkage flow, 2.3-4.6mm
|
Internal method
|
1-1.4
|
%
|
|
Mold shrinkage xflow, 0.75-2.3mm
|
Internal method
|
0.9-1.3
|
%
|
|
Mold shrinkage xflow, 2.3-4.6mm
|
Internal method
|
1.2=1.6
|
%
|
|
Melt flow rate, 250 ℃ 5kg
|
ASTM D1238
|
9.6
|
g/10min
|
|
Density
|
ISO 1183
|
1.34
|
g/cm³
|
|
Water absorption, 23℃ saturated
|
ISO 62-1
|
0.5
|
%
|
|
Moisture absorption. 23℃ 50% RH
|
ISO 62
|
0.15
|
% |
|
Melt volume rate,MVR at 250℃/5.0 kg
|
ISO 62
|
8
|
g/10min
|
|
Mechanical behavior
|
Standard
|
Value
|
Unit
|
|
Tensile stress yield, Type Ⅰ, 50mm/min
|
ASTM D638
|
48
|
MPa
|
|
Tensile stress break, Type Ⅰ, 50mm/min
|
ASTM D638
|
45
|
MPa
|
|
Tensile strain yield, Type Ⅰ, 50mm/min
|
ASTM D638
|
5
|
%
|
|
Tensile strain break, Type Ⅰ, 50mm/min
|
ASTM D638
|
110
|
%
|
|
Tensile modulus, 5mm/min
|
ASTM D638
|
2020
|
MPa
|
|
Flexural stress, yield, 1.3mm/min 50 mm span
|
ASTM D790
|
83
|
MPa
|
|
Flexural stress, break, 1.3mm/min 50 mm span
|
ASTM D790
|
83
|
MPa
|
|
Flexural modulus, 1.3mm/min 50 mm span
|
ASTM D790
|
2060
|
MPa
|
|
Hardness Rockwell (R)
|
ASTM D785
|
117
|
|
|
Impact
|
Standard
|
Value
|
Unit
|
|
Izod impact, unnotched, 23℃
|
ASTM D4812
|
NB
|
J/m |
|
Izod impact, notched, 23℃
|
ASTM D256
|
534
|
J/m |
|
Izod impact, notched, -30℃
|
ASTM D256
|
153
|
J/m |
|
Gardner 23℃
|
ASTM D3029
|
43
|
J |
|
Modified gardner 23℃
|
ASTM D3029
|
43
|
J |
|
Instrumented dart impact total energy, 23℃
|
ASTM D3763
|
35
|
J |
|
Izod impact, notched 80*10*4 +23℃
|
ISO 180/1A
|
45
|
kJ/㎡
|
|
Izod impact, notched 80*10*4 -30℃
|
ISO 180/1A
|
10
|
kJ/㎡
|
|
Izod impact, unnotched 80*10*4 +23℃
|
ISO 180/1A
|
NB
|
kJ/㎡
|
|
Izod impact, unnotched 80*10*4 -30℃
|
ISO 180/1A
|
NB
|
kJ/㎡
|
|
Thermal
|
Standard
|
Value
|
Unit
|
|
Vicat softening temperature rate B/50
|
ASTM E831
|
134
|
℃
|
|
Vicat softening temperature rate B/50
|
ISO 306
|
145
|
℃
|
|
Vicat softening temperature rate B/120
|
ISO 306 |
150
|
℃
|
|
Heat deflection temperature (HDT) 0.45MPa 6.4mm unannealed
|
ASTM D648
|
138
|
℃
|
|
Heat deflection temperature (HDT) 1.82MPa 6.4mm unannealed
|
ASTM D648
|
99
|
℃
|
| Relative temperature index, Elec |
UL746B |
120
|
℃
|
| Relative temperature index, Mech w/impact |
UL746B |
120
|
℃
|
| Relative temperature index, Mech w/o impact |
UL746B |
120
|
℃
|
|
Electrical
|
Standard
|
Value
|
Unit
|
| Volume resistivity |
ASTM D257
|
＞1.2E+16
|
Ω.cm
|
| Dielectric strength, in air, 3.2mm |
ASTM D149
|
18.5
|
kV/mm
|
| Dielectric strength, in oil, 1.6mm |
ASTM D149
|
25.2
|
kV/mm
|
| Dielectric strength, in air, 3.2mm |
ASTM D149
|
18.5
|
kV/mm
|
| Relative permittivity, 100 Hz |
ASTM D150
|
3.2
|
|
| Relative permittivity, 1 MHz |
ASTM D150
|
3.2
|
|
| Dissipation factor, 100 Hz |
ASTM D150
|
0.003
|
|
| Dissipation facctor, 1 MHz |
ASTM D150
|
0.03
|
|
| Arc resistance, tungsten (PLC) |
ASTM D495
|
6
|
|
| Hot wire ignition (PLC) |
UL 746A
|
2
|
|
| High voltage arc track rate (PLC) |
UL 746A
|
3
|
|
| High ampere arc ign, surface (PLC) |
UL 746A
|
2
|
|
| Comparative tracking index (UL) (PLC) |
UL 746A
|
2
|
|
| Flame characteristics |
Standard
|
Value
|
Unit
|
| UL recognized, 0.46mm |
UL94
|
HB
|
|
| UL recognized, 063mm |
UL94
|
V-0
|
|
| UL recognized, 3.0mm |
UL94
|
5va
|
|
| Oxygen index (LOI) |
ASTM D2863
|
30
|
%
|
| UV- light, water exposure, immersion |
UL 746C
|
F2
|
|
| Injection molding |
Standard
|
Value
|
Unit
|
| Drying temperature |
|
120
|
℃
|
| Drying time |
|
3-4
|
hrs
|
| Maximum moisture content |
|
0.02
|
%
|
| Melt temperature |
|
250-265
|
℃
|
| Nozzle temperature |
|
245-260
|
℃
|
| Front – Zone 3 temperate |
|
250-265
|
℃
|
| Middle – Zone 2 temperature |
|
245-260
|
℃
|
| Rear – Zone 1 temperature |
|
240-255
|
℃
|
| Mold temperature |
|
50-75
|
℃
|
| Back pressure |
|
0.3=0.7
|
MPa
|
| Screw speed |
|
50-100
|
rpm
|
| Mold temperature |
|
50-75
|
℃
|
| Short to cylinder size |
|
40-80
|
%
|
| Vent depth |
|
0.025-0.038
|
℃
|
