Sabic Lexan 123R-111 PC Description

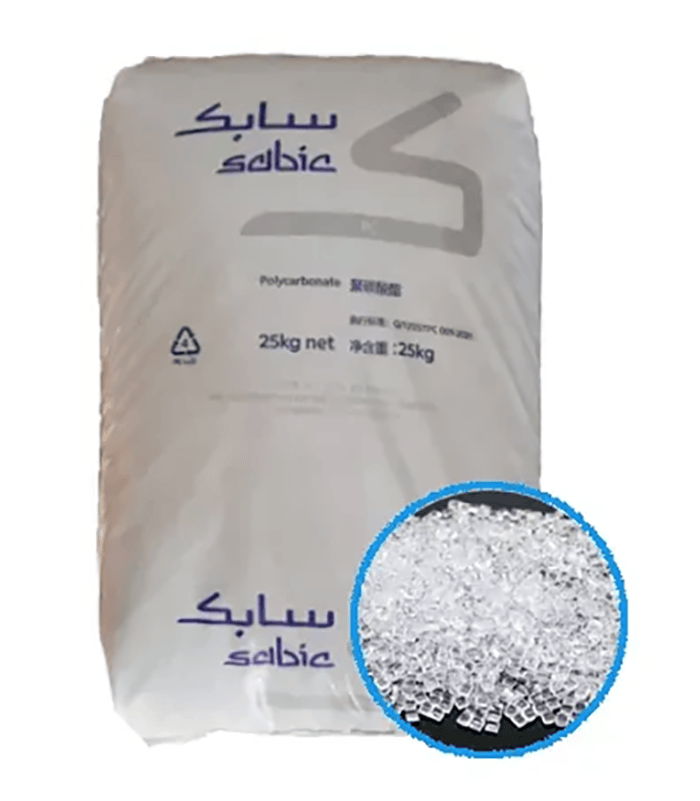

Lexan 123R is a general-purpose polycarbonate pellet (PC material) produced by Saudi Basic Industry. It offers good transmittance, excellent high-temperature resistance and dimensional stability, and is suitable for injection molding, contains a release agent and UV protection, making it suitable for use in outdoor applications.
⚠️Sabic Lexan 123R-111 is a transparent PC material with excellent clarity, while Lexan 123R-112 is a blue PC material. For custom color requirements, please contact us.
Key Attributes
|
Sabic Lexan 123R-111 PC
|
|
Product information
|
|
Manufacturer
|
Saudi Basic Industry Corporation
|
|
Part Marking Code
|
>PC material<
|
|
Color
|
Transparent
|
|
Material Shape
|
Polycarbonate pellets
|
|
Process
|
·Injection molding
|
|
Features
|
·High flow ·Nonhalogenated ·Good mould release
|
|
Physical property
|
Standard
|
Value
|
Unit
|
|
Density
|
ASTM D792
|
1.2
|
g/cm³
|
|
Density
|
ASTM D792
|
1.19
|
g/cm³
|
|
Shrinkage Flow 3.2mm
|
INTERNAL METHOD
|
0.5~0.7
|
%
|
|
Water Absorption 24hr
|
ASTM D570
|
0.15
|
|
|
Water Absorption 23°C Equilibrium
|
ASTM D570
|
0.35
|
%
|
|
Water Absorption 100°C Equilibrium
|
ASTM D570
|
0.58
|
|
|
Melt Index 300°C 1.2kg
|
ASTM D1238
|
17.5
|
g/10min
|
|
Specific Volume
|
ASTM D792
|
0.83
|
cm³/10min
|
|
Outdoor Suitability
|
UL746C
|
f1
|
|
|
Hardness
|
Standard
|
Value
|
Unit
|
|
Rockwell Hardness M(Scale)
|
ASTM D785
|
70
|
|
|
Rockwell Hardness R(Scale)
|
ASTM D785
|
118
|
|
|
Mechanical behavior
|
Standard
|
Value
|
Unit
|
|
Tensile Strength Yield 50mm/min
|
ASTM D638
|
62
|
Mpa
|
|
Tensile Strength Break 50mm/min
|
ASTM D638
|
65
|
Mpa
|
|
Elongation Yield 50mm/min
|
ASTM D638
|
7
|
%
|
|
Elongation Break 50mm/min
|
ASTM D638
|
110
|
%
|
|
Flexural Strength Yield 1.3mm/min
|
ASTM D790
|
93
|
Mpa
|
|
Flexural Modulus 1.3mm/min
|
ASTM D790
|
2340
|
Mpa
|
|
Izod Notch Impact 23°C
|
ASTM D256
|
694
|
J/m
|
|
Izod Un-notch Impact 23°C
|
ASTM D4812
|
3204
|
J/m
|
|
Tensile Impact Strength
|
ASTM D1822
|
546
|
kJ/m²
|
|
Falling Weight Impact Strength 23°C
|
ASTM D1822
|
169
|
J
|
|
Tabor Wear CS-17 Wheel 1kg
|
ASTM D1044
|
10
|
mg/1000cy
|
⚠️The technical data sheet (TDS) of Sabic Lexan 123R polycarbonate material from Saudi basic industry, if there are differences, please refer to the official website of Sabic.
Sabic Lexan 123R-111 PC Advantage
- High transparency and excellent optical performance, Sabic Lexan 123R offers excellent transparency with 80% transmittance and only 1% haze, making it suitable for applications with high requirements on appearance properties, transmittance and transparency.
- Anti-ultraviolet PC material. Sabic Lexan 123R contains anti-ultraviolet grade agent ingredients. The products made of it can still maintain good mechanical properties after long-term outdoor use. It can be used to produce home appliance housings, car lamp covers, etc.
- Good processing performance. Sabic Lexan 123R PC has a melt index of 17.5g/10min at 300℃ and 1.2kg test environment. Good fluidity makes it suitable for injection molding of thin-walled products. It also contains a release agent to reduce the residual resin material in the mold and facilitate product manufacturing.
