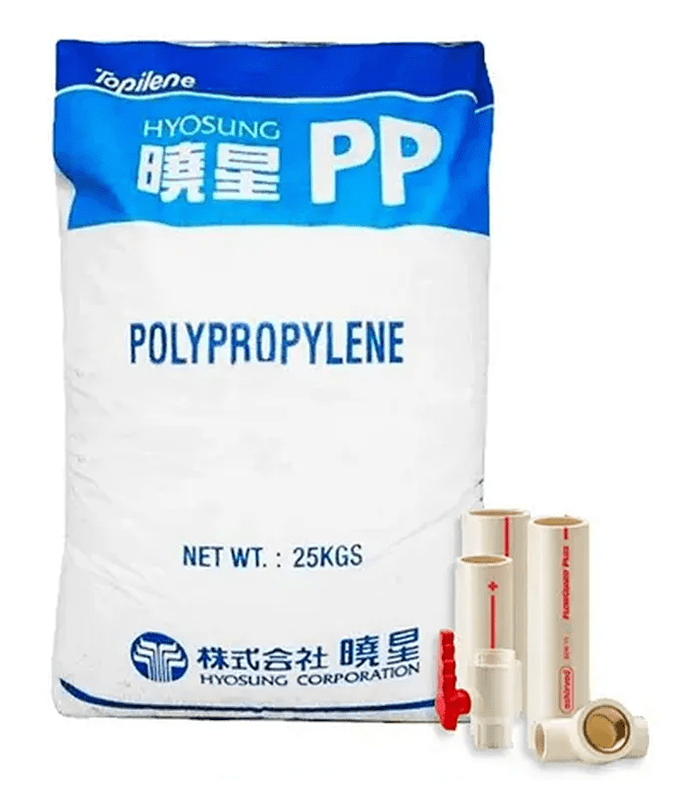

Hyosung Topilene R200P PP pellet Description
Topilene Topilene R200P is an extruded moldable polypropylene (PP resin material) manufactured by Hyosung, South Korea. It has properties such as impact resistance, resistance to high temperatures and chemical solvents. Due to R200P polypropylene’s good thermal stability, it can be used to produce hot water transportation pipes and radiator connectors.
| Hyosung TOPILENE® PP R200P |
| Product information |
|
Manufacturer
|
Hyosung Corporation
|
|
Other Certificates
|
RoHS MSDS
|
|
Part Marking Code
|
>PP material<
|
|
Color
|
Natural color
|
|
Material Shape
|
PP Pellets
|
|
Process
|
Extrusion molding PP
|
|
Polymer
|
Random Copolymer
|
|
Material Attribute
|
·Heat stabilized PP ·Drinking water contact PP ·Food Contact PP
|
|
specification
|
·DIN 8078 DVGW W270 EN ISO 15874 EU 10/2011
·FDA 21 CFR 177.1520 GB/T 18742 GB/T17219-1998 NSF/ANSI 14
|
|
Features
|
·Balanced stiffness/impact ·Long-term hydrostatic strength
·Chemical Resistant ·Environmentally sound ·Good processability
|
|
Application
|
·Radiator connectors ·PPR pipe ·Fittings ·Cold water pipe appication ·Hot water pipe appication
|
|
Additives
|
Antioxidant Erucamide slip
|
| Physical properties |
Standard |
Value |
Unit |
| Density |
ASTM D792 |
0.9 |
g/cm³ |
| Melt Index 230°C 2.16kg |
ASTM D1238 |
0.25 |
g/10min |
| Hardness |
Standard |
Value |
Unit |
| Rockwell Hardness R(Scale) |
ASTM D785 |
75 |
|
| Mechanical behavior |
Standard |
Value |
Unit |
| Tensile Strength Yield |
ASTM D638 |
270 |
kg/cm² |
| Flexural Modulus |
ASTM D790 |
9000 |
kg/cm² |
| Izod Notch Impact 23°C |
ASTM D256 |
NB |
kg-cm/cm |
| Izod Notch Impact -10°C |
ASTM D256 |
5 |
kg-cm/cm |
| Thermal |
Standard |
Value |
Unit |
| Heat deflection temperature (HDT) |
ASTM D648 |
90 |
°C |
| Vicat Softening Temperature |
ASTM D1525 |
130 |
°C |
| Extrusion molding |
Standard |
Value |
Unit |
| Zone 1 Temperature |
|
160~180 |
°C |
| Zone 2 Temperature |
|
180~210 |
°C |
| Zone 3 Temperature |
|
180~210 |
°C |
| Head Temperature |
|
180~210 |
°C |
| Melt Temperature |
|
200~220 |
°C |
| Cooling Temperature |
|
20~30 |
°C |
⚠️The technical data sheet (TDS) of хусонг Topilene R200P PPR pipe from Hyosung corporation, if there are differences, please refer to the official website of Hyonsung.
Hyosung Topilene R200P PP pellet Advantage
-
Food contact plastic material. Hyosung Topilene R200P meets food safety requirements and has NSF/ANSI, EU 10/2011 and FDA safety certifications. It is a very safe plastic material that does not emit harmful substances during transportation and storage of drinking water. It can be used for the production of plastic pipes in contact with foodstuffs
- High temperature polypropylene material. Compared with plastic materials of the same class, Hyosung R200P polypropylene granule has higher resistance to high temperature and can maintain good mechanical properties when transporting hot water pipes. It is often used as a radiator connector and raw material for hot water pipes.
- Good long-term hydrostatic strength. As an excellent material for plastic pipes, Hyosung Topilene R200P has good impact resistance and long-term hydrostatic strength. It can maintain good performance after long-term use, effectively extending the product life and ensuring pipeline safety.
